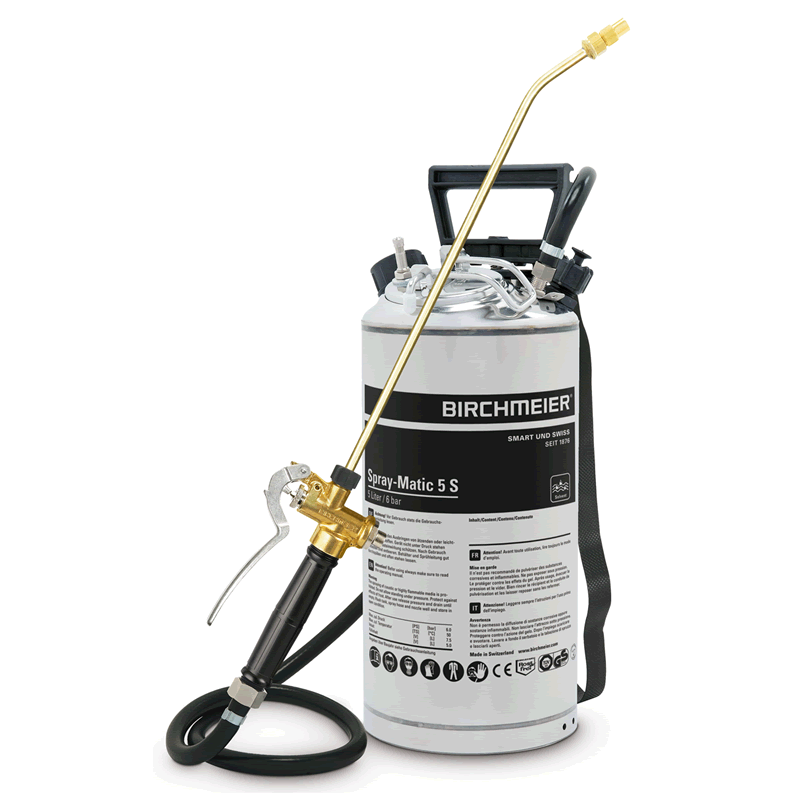

The Birchmeier Spray-Matic 5 S is a premium, heavy-duty 5-litre compression sprayer engineered to withstand the harshest environments. Featuring a robust stainless steel tank, brass hand pump, and oil-resistant Viton seals, this sprayer is purpose-built for professionals in pest control, horticulture, construction, and automotive industries. It features a dual-action system with a brass hand pump and a compressed-air connection for effortless pressurization up to a powerful 6 bar.
Equipped with a separate large filling opening, integrated fine filter, and an adjustable 1.3 mm brass nozzle, it delivers highly controlled liquid application. Optimized for water, formwork release oils, impregnation liquids, and mineral oil-based solvents, this very heavy-duty device ensures long-lasting, reliable performance.
Specifications
- Tank Material: Premium Stainless Steel
- Fluid Capacity: 5 Litres
- Maximum Working Pressure: 6 bar
- Seal Type: Oil-Resistant Viton Gaskets
- Pump Material: Heavy-Duty Brass
- Nozzle: 1.3 mm Adjustable Brass Nozzle
- Connectors & Fittings: Brass / Plastic Screw Fittings
- Special Features: Compressed Air Valve, Pressure Gauge, & Safety Valve
- Filtration: Piston Valve Assembly with Integrated Fine Filter
- Dimensions: 190mm x 190mm x 460mm
- Weight: 3.5 kg
- Chemical Restrictions: Not suitable for ammonia, peroxides, hypochlorites, limonenes, terpenes, or corrosive acids (formic, hydrochloric, nitric, sulfuric, hydrofluoric).
Directions for Use
-
Filling: Ensure the sprayer is completely depressurized using the safety valve. Unscrew the large filling opening and pour in your liquid up to the 5-litre mark.
-
Pressurization: Securely tighten the opening. Pressurize the tank either by using the robust brass hand pump or by connecting a regulated compressed-air source via the integrated air valve until the pressure gauge reaches the desired level (max 6 bar).
-
Application: Direct the adjustable 1.3 mm brass nozzle toward the target area and depress the piston valve assembly to spray. Twist the nozzle tip to transition between a fine mist and a solid stream.
-
Maintenance: After each use, depressurize the unit completely using the safety valve. Rinse the tank, hose, and piston valve thoroughly with clean water to prevent chemical buildup and prolong seal life.
